General
|
|
| Type |

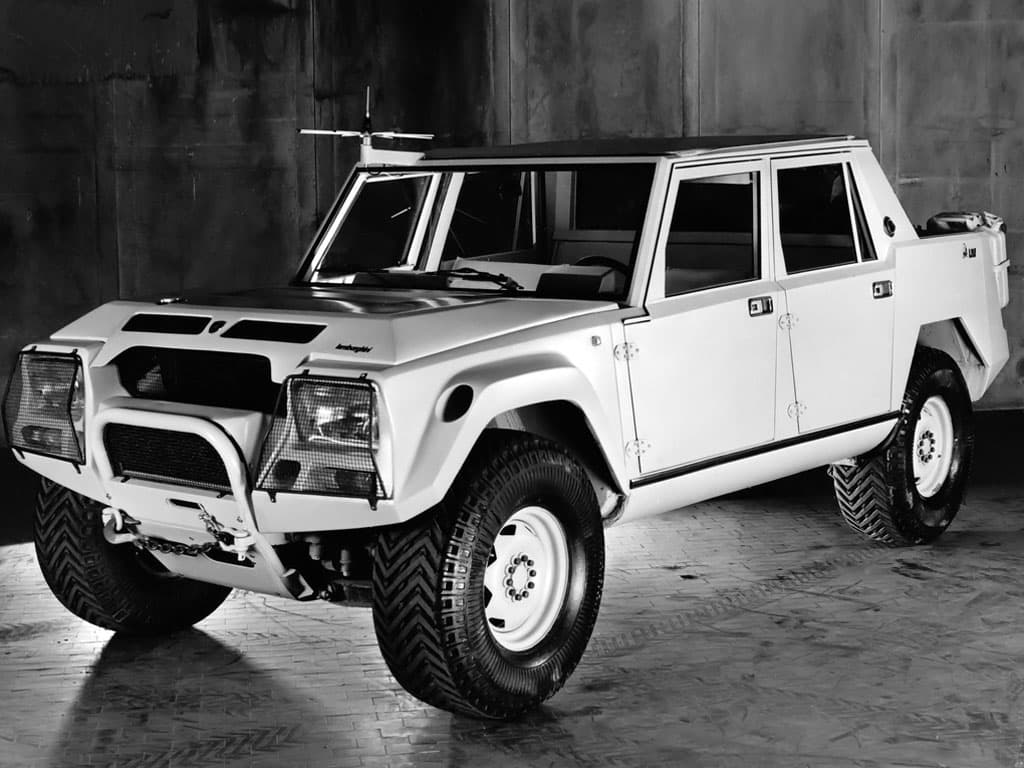

LMA002 |
| Years built |
1982 |
| Production |
1 units |
| Chassisnr. |
Prototype |
| Presentation |
March 1982 Geneva Auto Show |
| Type of car |
Four-door, four-seater, off road vehicle |
| Designed by |
Automobili Lamborghini SpA |
| Built by |
Automobili Lamborghini SpA |
Dimensions
|
|
| Wheelbase |
2950 mm / 115.94 in |
| Overall length |
4790 mm / 188.25 in |
| Overall width |
2000 mm / 78.6 in |
| Overall height |
1850 mm / 72.71 in |
| Front track |
1615 mm / 63.47 in |
| Rear track |
1615 mm / 63.47 in |
| Weight |
2600 kg / 5733 lbs |
| Ground clear. |
300 mm / 11.79 in |
Chassis
|
|
| Structure |
Multi-tubular steel spaceframe |
| Body |
Riveted aluminium and fiberglass panels |
| Suspension |
Independent, front and rear oscillating arms, coil springs and telescopic shock absorbers |
| Brakes |
All-wheel ventilated disc brakes (Countach) |
| Steering type |
n.a. |
| Front tire size |
14/16 LT |
| Rear tire size |
14/16 LT |
| Type of tire |
n.a. |
| Front wheel |
9×16 inch |
| Rear wheel |
9×16 inch |
| Type of wheel |
Steel |
Engine
|
|
| Type |
V-12 light alloy block front mounted, four wheel drive |
| Distribution |
Dual overhead camshafts, chain drive |
| Main Bearings |
7 |
| Cyl. Capacity |
4754 cc / 290 ci |
| Bore & stroke |
85.5×69 mm |
| Compr. Ratio |
n.a. |
| Max. power |
332 Bhp at 6000 rpm |
| Max. torque |
314 Lbs.ft. at 4500 rpm |
| Cooling system |
n.a. |
| Electr. system |
12 V |
| Ignition |
One coil and one distributor |
| Alternator |
80 A |
| Lubrication |
Wet sump |
| Fuel system |
Single electric pump, 6 twin-barrel Weber 45 DCOE carburetors |
Drivetrain
|
|
| Type |
ZF S5-24/3,5 speeds + reverse, all synchromesh |
| Clutch |
Dry-single plate, hydraulically operated |
| Reverse gear ratio |
2.700:1 – Max speed 0 Km/h or 0 Mph |
| Final drive ratio |
4.125:1 |
|
|
| Top speed |
188 Km/h / 117 Mph |
Capacities
|
|
| Fuel |
280 Liter / 74 Gallon |
| Engine oil |
17 Liter / 4 Gallon |
| Cooling system |
17 Liter / 4 Gallon |
Pricing
|
|
| Current value |
One of a kind prototype that is not available on the open market |
